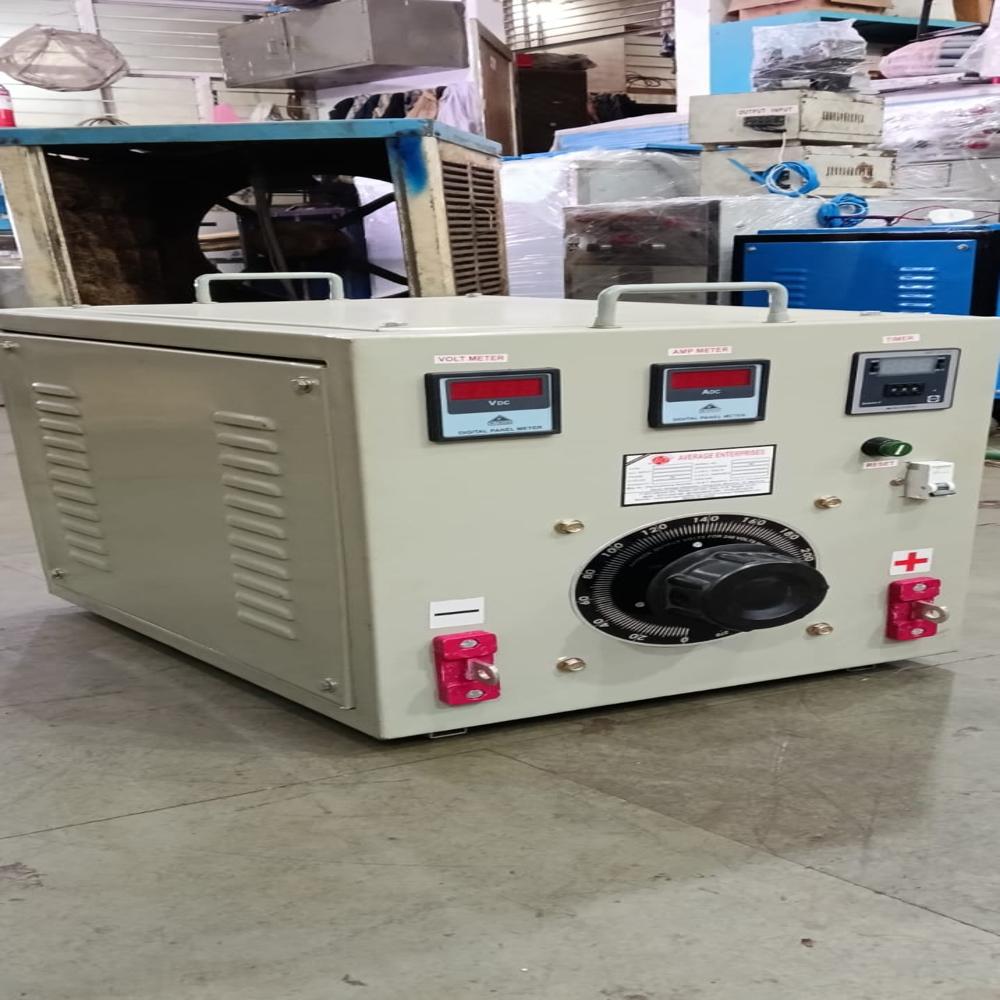

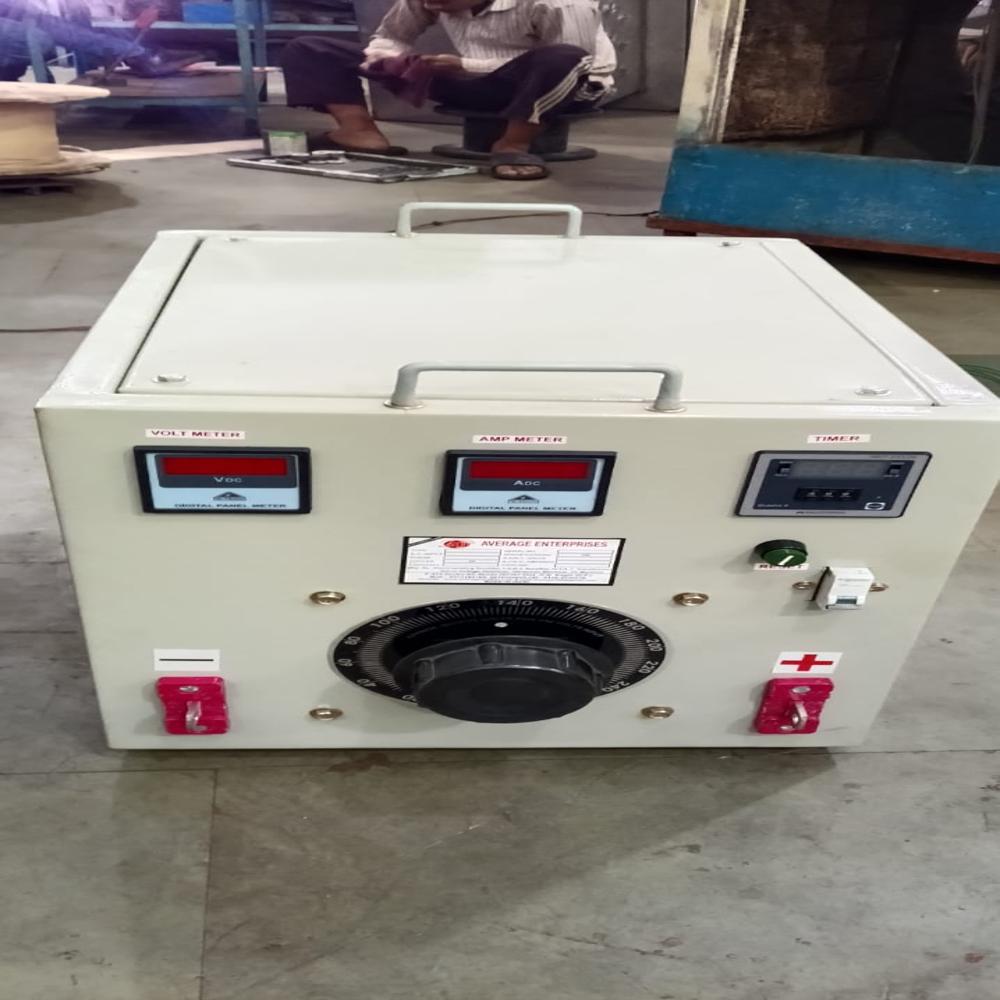

elctro plating Rectifier 300 Apms 12 Volt

elctro plating Rectifier 300 Apms 12 Volt Specification

Product Type
Electro Plating Rectifier

Application
Electroplating, Anodizing, Metal finishing

Input Voltage
415V AC, 3 Phase, 50 Hz

Output Frequency
50 Hz

Output Current
300 Amps

Output Voltage
12 Volt DC

Modular
Yes

Interface Type
Manual / Analog interface

Operation Type
Continuous Duty

Size
Standard

Color
Grey

Weight
Approx. 180 kg

Dimension (L*W*H)
1250 mm x 900 mm x 850 mm

Meter Type
Digital / Analog Ampere & Voltmeter

Enclosure
Dust & Water Resistant

Efficiency
Above 90%

Rectifier Type
Double Wound, Oil Cooled

Input Supply Frequency
47-53 Hz

Automation Grade
Manual

Cooling Type
Air / Oil Cooled

Phase
Three Phase

Protection
Overload, Short Circuit & Over Temperature

Insulation Class
Class F or H

Output Control
Stepless (variable voltage and current)

Ripple Factor
Less than 5%

Duty Cycle
100%

elctro plating Rectifier 300 Apms 12 Volt Trade Information

Minimum Order Quantity
1 Unit

FOB Port
FRANT

Payment Terms
Paypal, Cash on Delivery (COD), Cash Advance (CA)

Supply Ability
100 Units Per Month

Delivery Time
7 Days

Sample Available
No

Sample Policy
Free samples are available

Packaging Details
GOOD PACKAGING SAFE IN PROCDUCT

Main Domestic Market
Karnataka, All India, North India, Sikkim, Tamil Nadu, Telangana, Tripura, Uttar Pradesh, Kerala, Delhi, Haryana, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Uttarakhand, West Bengal, South India, West India, Gujarat, Manipur, Bihar, Jharkhand, Punjab

Certifications

About elctro plating Rectifier 300 Apms 12 Volt

AVERAGE ENTERPRISES

An electroplating rectifier is a power supply device that converts alternating current (AC) to a stable, controllable direct current (DC) required for electroplating, where a metal layer is deposited onto a surface. It regulates the voltage and current to ensure a smooth, uniform coating and is essential in industries like electronics, automotive, and jewelry for processes such as plating, anodizing, and electroforming. Rectifiers feature cooling systems (air or water) and protective measures for safe, continuous operation.

High-Efficiency, Reliable Power for Electroplating

Designed to meet stringent industrial demands, this rectifier boasts above 90% efficiency and robust output control, ensuring uniform plating results. With digital and analog metering, users can accurately monitor voltage and current, promoting better process control and product consistency.

Durable Cooling and Protection Systems

Choose between air or oil-cooled configurations to match your facility's needs. The built-in protection features-overload, short-circuit, and temperature-safeguard the equipment, reducing downtime in busy production environments. Its dust- and water-resistant enclosure is well-suited for tough factory floors.

Flexible Manual Operation and Modular Design

The manual/analog interface offers intuitive control over output settings, making it suitable for operators of varying expertise. Its modular nature ensures easier maintenance, expansion, or upgrades, extending the lifespan and adaptability of the unit.

FAQ's of elctro plating Rectifier 300 Apms 12 Volt:

Q: How does the cooling system work in this electroplating rectifier?

A: The unit is available in both air and oil-cooled configurations. Air cooling uses fans for heat dissipation, while oil-cooled models use mineral oil to transfer heat away from components, making them ideal for continuous operation or higher ambient temperatures.

Q: What benefits does the rectifier's high efficiency offer for electroplating?

A: With efficiency above 90%, the rectifier minimizes energy loss, ensuring more of the electrical input is used for the plating process itself. This results in lower operating costs and more consistent metal deposition on workpieces.

Q: Where can this rectifier be installed and operated?

A: Its dust and water-resistant enclosure allows safe installation in industrial environments, such as plating shops or manufacturing plants. It's suitable for locations needing robust, continuous-duty power supplies for surface treatment processes.

Q: What safety features are included to protect the rectifier and operators?

A: It incorporates overload, short-circuit, and over-temperature protection systems. These features automatically intervene to prevent damage or hazards, thus enhancing operational safety for operators and equipment alike.

Q: How do I control the output current and voltage of this rectifier?

A: The rectifier provides stepless control, allowing variable adjustment of both voltage (up to 12V DC) and current (up to 300A) manually. This flexibility is useful for different electroplating or anodizing requirements, ensuring optimal process results.

Q: What is the recommended process for routine maintenance?

A: Regularly inspect meters, connections, and cooling systems. For oil-cooled units, check oil quality and levels periodically. Ensure ventilation is unobstructed, and test protection circuits as part of preventive maintenance to sustain reliability.
