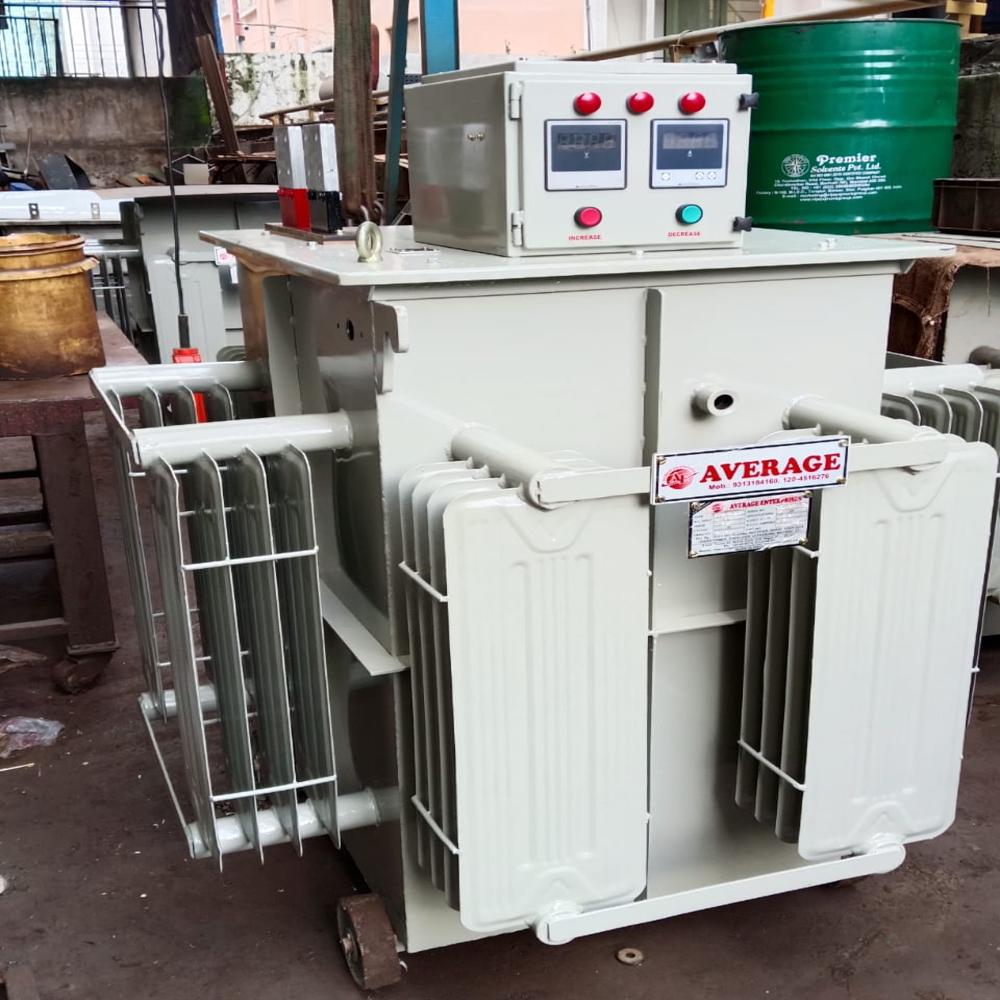

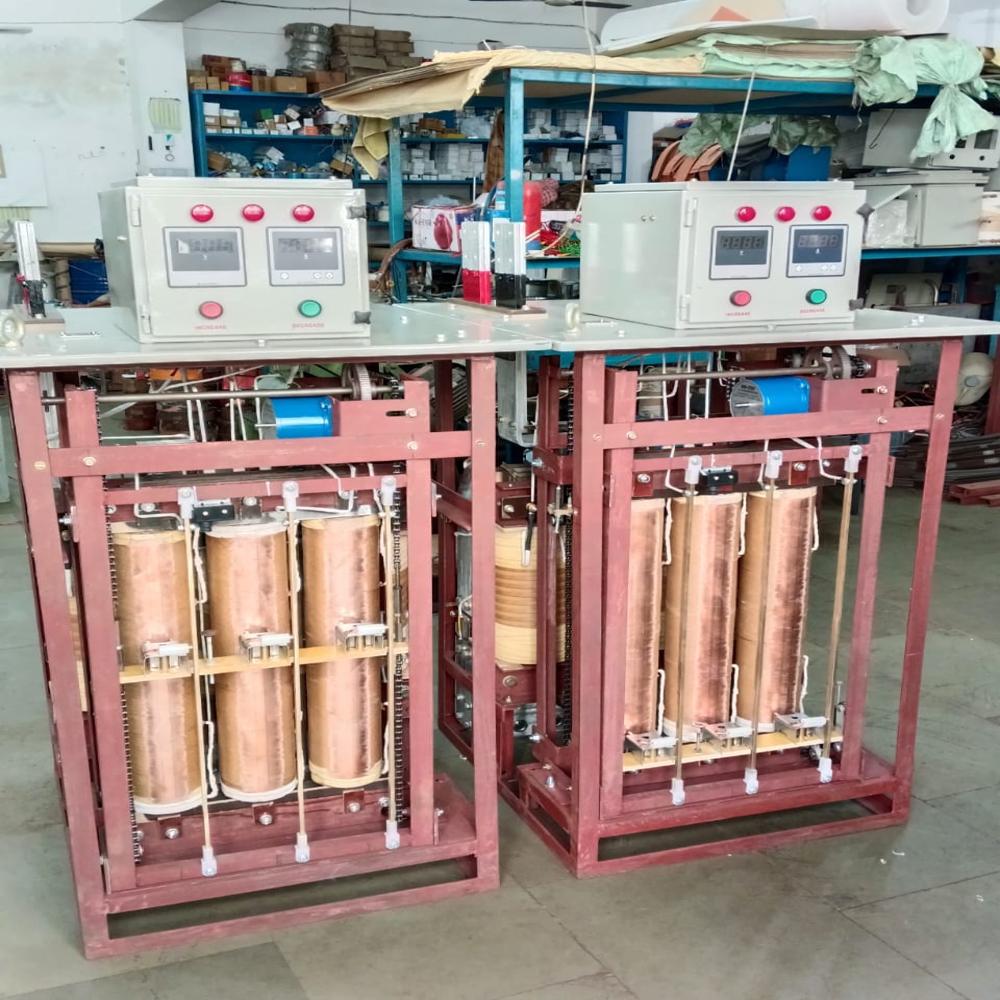

ELECTRO PLATING RECTIFIER

ELECTRO PLATING RECTIFIER Specification

Product Type
Electro Plating Rectifier

Application
Electroplating, anodizing, metal finishing, electroforming

Input Voltage
415V AC, 3 Phase, 50 Hz

Output Frequency
50 Hz

Output Current
Rectifier models available up to 10,000 Amps

Output Voltage
Rectifier models available up to 24V DC

Modular
Yes

Interface Type
Manual with analog meters (digital meters optional)

Operation Type
Continuous

Size
Varies by model, standard compact design

Color
Industrial grey, blue finish

Weight
Depends on capacity (example: 75-150 kg for 1000A/12V)

Dimension (L*W*H)
As per model (e.g., 900mm x 650mm x 750mm)

Output Regulation
Automatic voltage and current regulation

Custom Options
Available for higher/lower voltage/current ranges

Ripple Factor
Less than 5%

Duty Cycle
100% at rated output

Material of Construction
MS powder coated cabinet

Cooling System
Air/oil cooled (as per order)

Insulation Class
Class F or H

Efficiency
Greater than 85%

Type of Control
Thyristor Controlled/Rectified

Display
Analog/digital voltmeter & ammeter

Protection
Overload, short circuit, and earth fault protection

Cooling Fan
Heavy-duty, industrial grade

ELECTRO PLATING RECTIFIER Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash on Delivery (COD)

Delivery Time
1 Week

Sample Available
No

Packaging Details
GOOD PACKAGING

Main Domestic Market
All India

About ELECTRO PLATING RECTIFIER

AVERAGE ENTERPRISES

An electroplating rectifier is a power supply device that converts alternating current (AC) to a stable, controllable direct current (DC) required for electroplating, where a metal layer is deposited onto a surface. It regulates the voltage and current to ensure a smooth, uniform coating and is essential in industries like electronics, automotive, and jewelry for processes such as plating, anodizing, and electroforming. Rectifiers feature cooling systems (air or water) and protective measures for safe, continuous operation.

Superior Output Regulation

This rectifier incorporates advanced automatic voltage and current regulation systems, guaranteeing high precision and reliability for your critical electroplating operations. With a ripple factor below 5%, it protects the quality of your finished products and ensures uniform metal deposition. The output is adjustable within a wide range, catering to varying process requirements.

Robust Construction for Industrial Needs

Manufactured with a mild steel (MS) powder-coated housing, the rectifier withstands harsh industrial environments. Class F or H insulation offers excellent thermal stability, while a heavy-duty, industrial-grade cooling fan ensures optimal performance even during extended operation. Its modular, compact design allows for easy installation and scalability.

Comprehensive Safety and Protection

Safety is at the forefront, with integrated protection against overloads, short circuits, and earth faults. The rectifier's automatic control mechanisms help prevent equipment damage and minimize downtime, supporting a 100% duty cycle at rated output. Analog or digital meters provide real-time status for accurate monitoring.

FAQ's of ELECTRO PLATING RECTIFIER:

Q: How does the Electro Plating Rectifier ensure precise voltage and current regulation during operation?

A: The rectifier uses automatic voltage and current regulation, managed through advanced thyristor control technology. This allows consistent output within set parameters, ensuring stable processes and high-quality plating results by regulating fluctuations and maintaining a ripple factor of less than 5%.

Q: What types of applications can this rectifier be used for?

A: This rectifier is ideally suited for electroplating, anodizing, metal finishing, and electroforming applications. Its high accuracy, reliability, and customizable output make it suitable for a wide range of industrial surface finishing requirements.

Q: When is it necessary to choose between air-cooled and oil-cooled models?

A: Air-cooled models are recommended for standard operating conditions and moderate current requirements. Oil-cooled versions are preferred in heavy-duty, high-current scenarios or environments with higher ambient temperatures, as they provide enhanced heat dissipation and longevity.

Q: Where can this rectifier be installed within a production facility?

A: Thanks to its modular and compact design, the rectifier can be installed near the process tanks or within central power distribution areas. The robust MS powder-coated cabinet is designed to withstand both shop-floor and more protected control room environments.

Q: What is the process for selecting a rectifier model if custom voltage or current capacity is required?

A: Customers can specify their required output voltage or current at the time of order. The manufacturer offers customization for different capacities, ensuring the rectifier precisely matches your application needs, whether for higher or lower ranges.

Q: What benefits does the 100% duty cycle provide during continuous operation?

A: A 100% duty cycle means the rectifier can operate at its rated capacity non-stop, supporting long production runs. This translates into higher throughput, reduced process interruptions, and improved operational efficiency.

Q: How does the built-in protection system enhance operational safety?

A: The rectifier includes overload, short circuit, and earth fault protections. These features detect abnormal conditions and either alert the user or automatically shut down the system, thereby preventing equipment damage and minimizing maintenance downtime.
