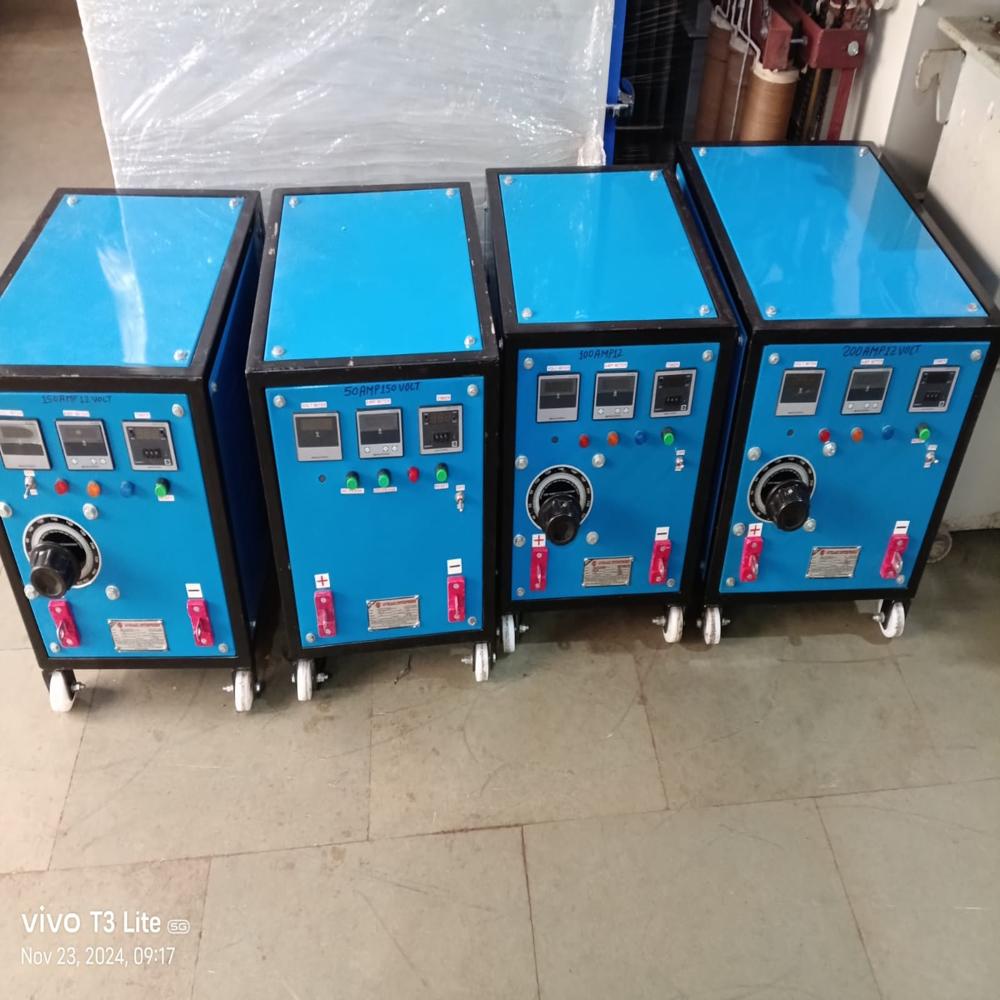

ELECTRO PLATING RECTIFIER

ELECTRO PLATING RECTIFIER Specification

Product Type
Electro Plating Rectifier

Application
Electroplating, Anodizing, Metal Finishing, Industrial Processes

Input Voltage
415V AC 10%, 3 Phase, 50/60 Hz

Output Frequency
50 Hz

Output Current
1000 Amps (Available in different current ratings as per requirements)

Output Voltage
0-12 V DC (Adjustable as per requirement)

Modular
Yes

Interface Type
Panel Mounted Analog/LED Digital Meters

Operation Type
Manual/Automatic

Size
Standard/Custom as per requirement

Color
Grey with Blue or as specified

Weight
Approx. 120 kg (Varies by rating & design)

Dimension (L*W*H)
1050mm x 650mm x 800mm (Approx., may vary)

Rectification Method
Silicon Diode Based, Full Wave

Enclosure Material
Mild Steel, Powder Coated

Indicator
ON/OFF, Overload & Voltmeter/Ammeter Indication

Cooling Method
Air Cooled / Oil Cooled (Customizable)

Control
Stepless, through Variac or Thyristor

Efficiency
More than 85%

Connection Type
Bus Bar/Lug Terminal

Output Ripple
Less than 2% at Full Load

Protection
Overload, Short Circuit, Over Temperature

Duty Cycle
100% Continuous

ELECTRO PLATING RECTIFIER Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cheque, Paypal, Cash Against Delivery (CAD), Days after Acceptance (DA), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID)

Supply Ability
20 Units Per Day

Delivery Time
4-5 Days

Sample Available
No

Main Export Market(s)
North America, South America, Eastern Europe, Western Europe, Middle East, Asia, Australia, Central America

Main Domestic Market
Chandigarh, Punjab, Delhi, Haryana, Himachal Pradesh, Madhya Pradesh, Uttar Pradesh, Uttarakhand, All India, North India, Rajasthan

About ELECTRO PLATING RECTIFIER

An electroplating rectifier is a power supply device that converts alternating current (AC) to a stable, controllable direct current (DC) required for electroplating, where a metal layer is deposited onto a surface. It regulates the voltage and current to ensure a smooth, uniform coating and is essential in industries like electronics, automotive, and jewelry for processes such as plating, anodizing, and electroforming. Rectifiers feature cooling systems (air or water) and protective measures for safe, continuous operation.

Customizable Cooling Solutions

Choose between air-cooled and oil-cooled systems to suit your working environment. Both options are engineered for efficient heat dissipation and reliable performance during prolonged operations, ensuring consistent results in electroplating, anodizing, and other industrial finishing processes.

Robust Protection and Safety

The rectifier is equipped with multiple protection systems, including overload, short circuit, and over temperature safeguards. The durable powder-coated mild steel enclosure enhances safety, making it suitable for demanding industrial settings and long-duration usage.

Stepless Control and Accurate Monitoring

Experience smooth output adjustments with stepless control through Variac or Thyristor. Panel-mounted analog or digital meters provide clear ON/OFF, overload, voltmeter, and ammeter indications, allowing precise regulation and real-time status monitoring during operations.

FAQ's of ELECTRO PLATING RECTIFIER:

Q: How is the output voltage and current of the rectifier adjusted?

A: The output voltage (0-12V DC) and current (up to 1000 Amps or customized) are steplessly adjustable using either a Variac or Thyristor-based control system, ensuring precise settings for various electroplating and metal finishing applications.

Q: What are the benefits of choosing between air cooled and oil cooled methods?

A: Air-cooled models are generally preferred for easier maintenance and lower operational costs, while oil-cooled systems offer superior heat management, making them ideal for continuous or high-load applications.

Q: When should a modular rectifier be selected?

A: A modular rectifier is recommended when scalability, easy maintenance, and future expansion are key considerations. It allows for quick servicing and adaptation to changing industrial requirements.

Q: Where can this rectifier be installed and used?

A: This rectifier is suitable for installation in industrial environments focused on electroplating, anodizing, and other metal finishing processes. It is designed for use by manufacturers, suppliers, and traders throughout India.

Q: What protection features are included in this rectifier?

A: Multiple layers of protection such as overload, short circuit, and over temperature mechanisms are integrated, ensuring safe and continuous operation of the rectifier even during unexpected power or load fluctuations.

Q: How does the indicator system aid in operation?

A: Panel-mounted indicators, including ON/OFF, overload, and voltmeter/ammeter displays, provide operators with real-time feedback, making it easier to monitor performance and respond quickly to any operational issues.

Q: What are the main benefits of using this rectifier in electroplating processes?

A: The rectifier offers high efficiency (>85%), low output ripple (<2%), customizable output settings, and robust durability, all ensuring superior quality and consistency in plating, reduced operational downtime, and prolonged equipment lifespan.
